1. Input and output complete isolation, safety and credibility.
2. Advance current control mode and stable & reliable circuit topological structure.
3. All-around protection functions, output over/under voltage, over current, short-circuit and over temperature protection of whole body
4. Adopt no-master automatic equalized current technology, can parallel connection, convenient to extend the capacity
5. AC and DC input are available, and AC and DC can be fully isolated by electricity
|

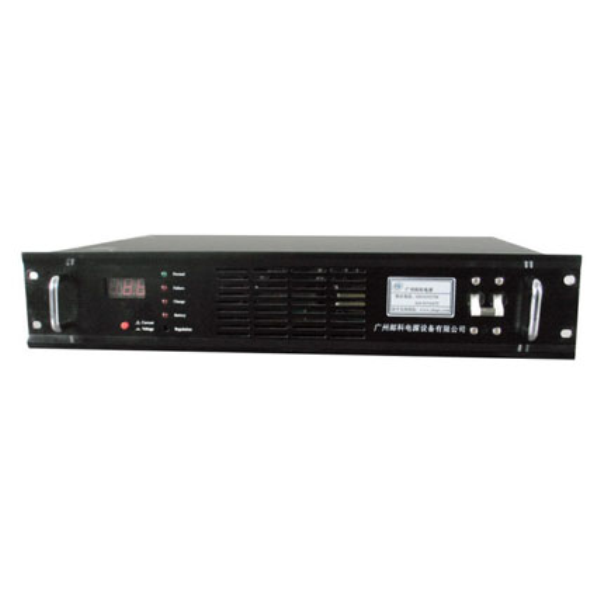

Model |
EGE110S24** |
|
Input voltage range |
90～130VDC |
|
Output voltage range |
20~30VDC |
|
Output rated value |
24VDC |
|
Output Current |
10A、20A、30A、40A、50A |
|
Load regulation |
≤0.2% |
|
Power grid regulation |
≤0.1% |
|
Degree of imbalance for equalized current |
≤±3% |
|
Phone weighted noise voltage |
≤2mV（CCITT） |
|
Peak—peak noise |
≤150mV |
|
Wide frequency noise |
≤50mV |
|
Discrete noise |
≤20mV |
|
Efficiency |
≧82% |
|
Dynamic response |
20% ~ 100% step load≤200Restoring time≤100uS |
|
Working temperature |
－5～45℃ |
|
Cooling mode |
Temperature control wind cooling |
|
MTBF |
100,000Hour |
|
Insulating intensity |
Input to shell, input to output 1500V/50Hz AC voltage one minute; output to shell 500V DC one minute |
|
Dimension |
1U/ 2U |
