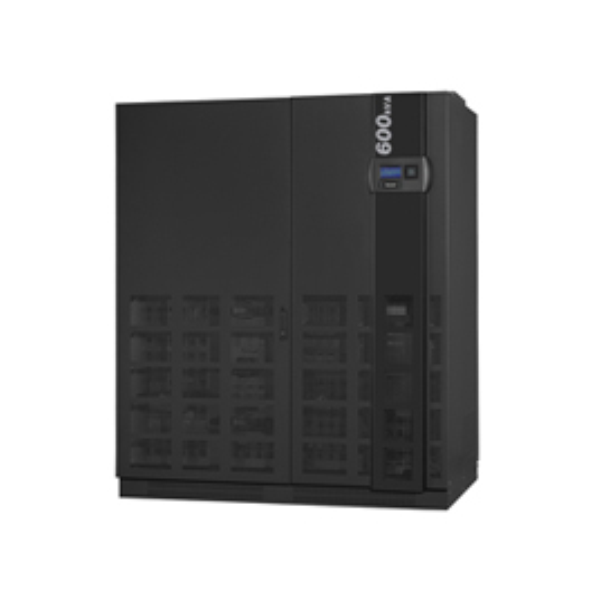

DS|POWER DS300 UPS SERIES (400-600kVA)

1 / 6
  • Cập nhật lúc cuối: 24/04/2020 15:11:45,  Đã xem: 949
  • Mã sản phẩm: DS300
  • Trạng thái: Còn hàng
Giá bán: Liên hệ 0987.602.945

Liên Hệ Ngay  0977.246.380

Để được gửi catalogue và báo giá tốt nhất



The new DS Power range UPS uses the latest DSP technology to be programmed to suit a wide variety of electrical environments without impending its performance. With the DS Power range, efficiency, reliability and functionality are enhanced to levels unattainable with the old analogue technology. This technology does not only create significant increase in MTBF, but the capability of DSP to accurately manipulate signals at very high speed permits all the UPS subsystems to be controlled with greatly increased precision.

• Transformerless UPS topology
• Low input current total harmonic distortion (THD)
• High input power factor
• High efficiency up to 94.5%
• Cold start function
• Static and maintenance by-pass switch
• Output short circuit and overload protection
• External REPO switch input
• 512 events memory (512 events 45000 alarms)
• Clock and calender (battery supported)
• Automatic battery test, remaining battery time indicator
• Temperature compansated charge system (optional)
• 2 RS232 serial ports and 12 dry contact outputs
• 3 DSP controlled modular structure
• Optional SNMP and MODBUS adaptors
• Optional graphical panel
• Optional usb flash memory
• Full digital structure
• Small footprint
• Ecomode operation (optional)
• Fewer electronic components
• Output current limiting
• Advanced diagnostics for the input
• Selectable input/output coltage/frequency/range
• Split by-pass input (second input)
• Output DC leakage protection
• Separate DSP for inverter control
• Separate DSP for the PFC
• 3 level battery protection
• High charge current capacity
• Charge/discharge current indicator
• Advanced remote control features
• Manufactured according to EC Directive; EN62040
• 5 years spare parts support
• 2 years warranty
Mọi chi tiết về sản phẩm xin liên hệ 0977.246.380 hoặc gửi yêu cầu vào email: sale.hpco@gmail.com để được gửi catalogue và báo giá tốt nhất.
